Chillers that work!!

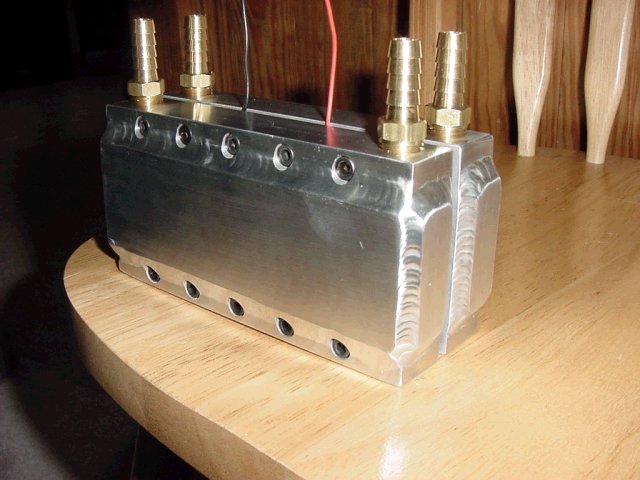

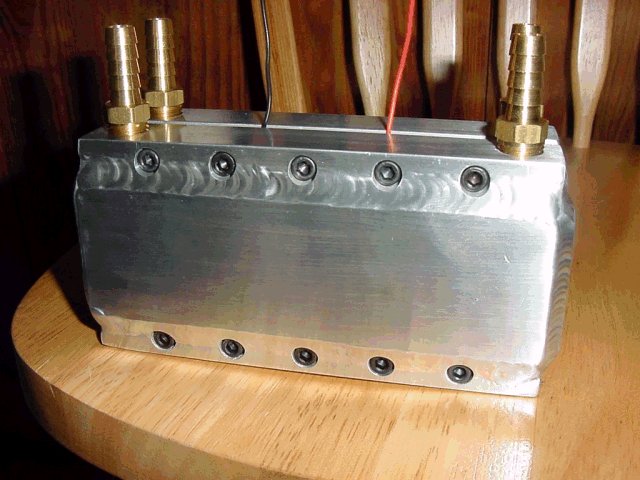

This is a set of chiller blocks I designed and made for a buddy. I made another set that are even bigger!!

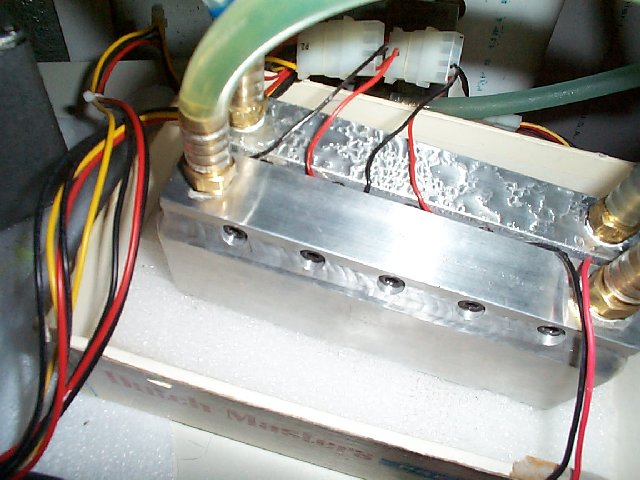

The blocks in action with 3 72 watt pelts Setup consisted of the following:
1.33 AXIA TBird @ 1700 with 2.15v
Maze 2.1 waterblock on the cpu
Evaporative tower cooling the hot side with a Danner Mag7 pump, RIO-180 pump on the coldside
RESULTS:
Ambient 38c
Idle 10c
Load 29c
Water Coldside 3c
Water Hotside 45c
Keep in mind the high ambient temperature
Designed to hold up to 3 50mm x 50mm pelts and still apply massive amounts of clamping force
